Race Car Rivets 3/16 x 5/8 with 1/2 head – ultimate multi-grip – ABS62610

$37.15$201.83

Recommended application conditions for our Medium Head multi-grip rivets ABS62610M: Start with #11 Drill size for slightly over-sized 3/16″, 0.195 to 0.212 hole diameter. The application thickness before the rivet is inserted should be between 1/16″ to 5/8″. This will allow our 3/16″ diameter high alloy Aluminum rivet body with 1/2″ MEDIUM head size and steel nail to perform as intended.
These Medium Head multi-grip rivets ABS62610M are often used in applications where the holes have either become oval or just too big for standard 3/16″ diameter rivets. When the tool pulls the mandrel or nail, the head of the nail pulls and swells the rivet body in a combined clamping and swelling action. While the setting action occurs it pulls the application materials together from the backside materials to form a tight, pulled together application that won’t come loose too easily due to the 1000 pulling power of this rivet’s nail. Good selection for fastening sheet metal and many other materials.

Description

Race Car Rivets 3/16 x 5/8 ABS62610m Black 1/2 head ultimate multi-grip

Race Car Rivets 3/16 x 5/8 ABS62610m Black 1/2 head ultimate multi-grip are one of aDP Rivet’s popular “Ultimate” rivet products. Ultimate rivets are enhanced multi-grip type rivets that were re-engineered by aDP Rivet to provide customers with an easy to use, fail-proof rivet. With over 3770 customer comments these Ultimate rivets have helped aDP Rivet maintain a 100% customer five star approval rating for over ten years. Customers love these Race Car Rivets 3/16 x 5/8 ABS62610m Black 1/2 head ultimate multi-grip because they take the worry out of measuring because they will work from paper thin up to 5/8″ thick. Furthermore by filling over-sized holes makes these rivets a helpful tool when fixing your race car. Because the nail has a pyramid shaped head it’s easy to insert into the hole. As a result look at the Advantages when using our Race Car Rivets 3/16 x 5/8 ABS62610m Black 1/2 head ultimate multi-grip.

Made in America

Most of all these Race Car Rivets 3/16 x 5/8 ABS62610m Black 1/2 head ultimate multi-grip. These 3/16 inch diameter aluminum rivet body with 1/2″ medium head size. Painted with durable epoxy based semi-gloss painted finish prior to insertion of mating user friendly steel nail. Customers will love these Race Car Rivets 3/16 x 5/8 ABS62610m Black 1/2 head ultimate multi-grip because they are truly a one size rivets all from very thin 1/16″ up to 5/8″ thickness.

Description & Specifications:

TYPE:  Ultimate Multi-Grip Rivets
SIZE: 3/16″ Rivet diameter, about 1″ long before using, about 1/2″ medium head diameter.
MATERIALS: Aluminum rivet (5052 to 5056 alloy) with Steel (1008 to 1038 grade) pulling nail.
FINISH: BLACK colored rivet body before nail inserted. Steel pulling nail is coated carbon steel.
WORKING GRIP RANGE: Truly a one size rivets all from very thin 1/16″ up to 5/8″ thickness
APPLICATION HOLE SIZE: Start with 0.196 to 0.215″ diameter hole, #11 or 3/16″ drill bit
CLAMPING POWER: 1000 pounds of pulling power pulls multiple layers tightly together and holds tight.
Where to use: Any application where strong, extra, extra long rivet length is needed.
What types of application materials: Almost any type, from cardboard and plastics, to aluminum and steel sheets.
EASE OF USE: Super EASY to install, no back up washer needed and can be set with any functioning blind rivet tool.

Ultimate Multi-grip Rivet Advantages:

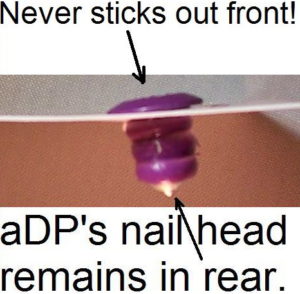

1. Fills in over-sized holes, oblong and worn out holes up to 1/4″. Great rivet when hand drilling holes in metals and many other materials as rivet swells to fill the hole even when the drilled hole isn’t perfect. 2. EASY DRILL-OUT replacement as you only drill aluminum. If you need to remove these rivets it’s easy because the unique design steel nail head always remains in the extreme back or blind side. That means you only need to drill out the aluminum rivet head and not the steel nail.

3. Tight clamp-up with 1000 pounds pulling power. These rivets will pull multiple sheets tightly together. 4. NO back-up washer needed. These rivets form their own layers of over-sized bulges on the back or blind side materials wide enough to hold even if the hole is about 1/4″. 5. Solid, tight joint results with water resistance abilities. When this rivet is set it swells out to fill the hole as well as around it’s unique design steel nail head to form a weather and water resistant solid joint. 6. Nail never sticks out finish side. Even when set in paper thin conditions these rivets never have a protruding nail sticking out the finish side of the application.

Recommended application conditions for these Race Car Rivets 3/16 x 5/8 ABS62610m Black 1/2 head ultimate multi-grip

First of all start with a #11 or 3/16″ Drill size. Hence a slightly over-sized 3/16″, 0.196 to 0.215 inch hole diameter. The application thickness before the rivet is inserted should be between 1/16″ to 5/8″. This will allow our 3/16″ diameter high alloy Aluminum rivet body and mating steel nail to perform as intended.

In conclusion these Race Car Rivets 3/16 x 5/8 ABS62610m Black 1/2 head ultimate multi-grip are great race car fasteners. As a result these rivets fix applications where the holes have either become oval or just too big. Because this manufacturer has years of race car building experience. As a result their unique design provides a tight, pulled together application that won’t come loose. Good selection for fastening sheet metal and many other materials.
aDP Rivet offers the largest selection of colored rivets with over a dozen Colors Available!ABS62610M colored rivets

These Race Car Rivets 3/16 x 5/8 ABS62610m 1/2 head ultimate multi-grip are painted prior to inserting their mating nail. Keep in mind rivets that show paint “over-spray” on the nail/mandrel are a tell tale sign you are NOT buying factory direct colored rivets. Don’t settle for after thought paint as the paint “over spray” on the nail may lead to premature rivet gun problems. Furthermore the paint on the nails clogs up the rivet tool mechanism. As the manufacturer, our colored rivets are specially prepared to achieve optimum paint adhesion. Because the process utilizes an epoxy based paint the result provides very good colors. Finally, in addition the ability to color match almost any customer color request. An important feature of our colored rivets is we have the ability to paint ONLY the rivet body. Resulting in the pulling mandrel, (nail) never having paint on it. In conclusion, this is the absolute optimum method for painting blind rivets.




Additional information

Color

, , , , , , , , , ,

Rivets per Bag/Box

100, 1000, 250

Diameter

.19

Grip Range

.06 to .62

Length of Body

0.82

Head Diameter

1/2, 3/8, 5/8

Rivet Type

Aluminum with STEEL Nail
